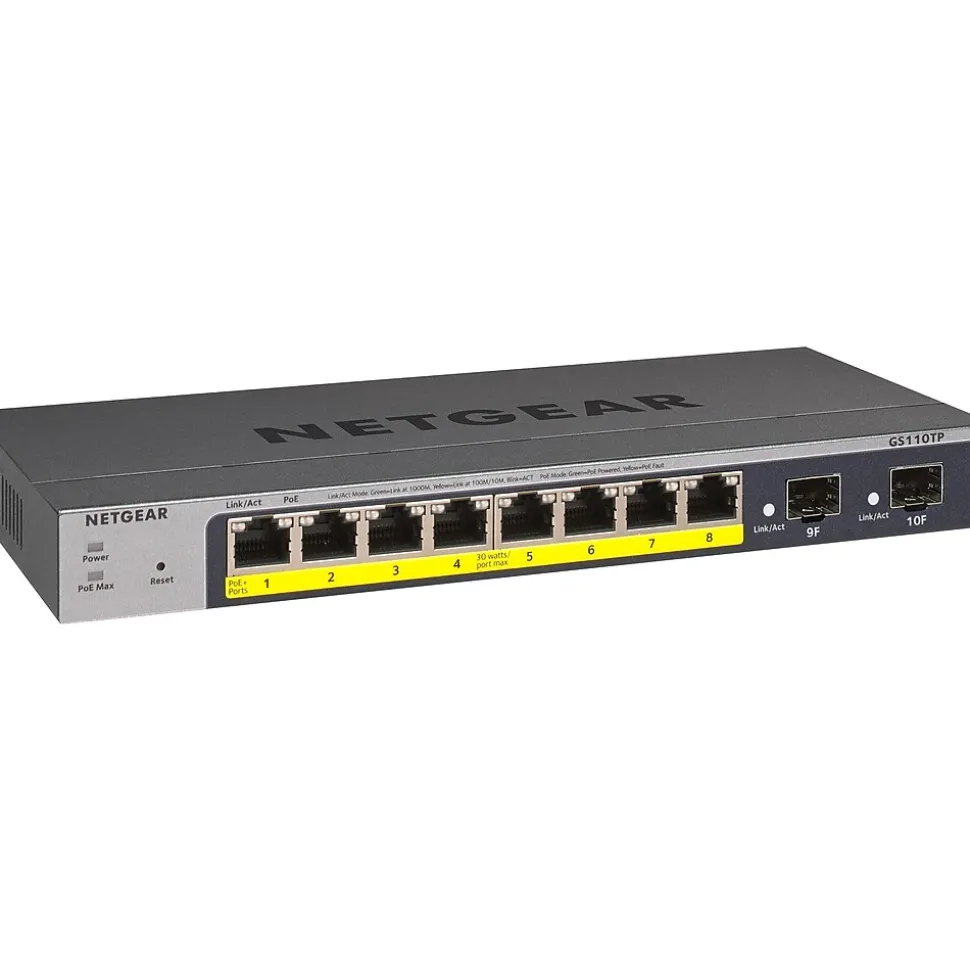

Netgear Smart Managed Pro 8-Port Gigabit Ethernet Smart Switch (GS110TP-300NAS)

$130.99

SKU: SKUIM16AF039 Categories: Computers & Accessories, Ethernet Switches & Splitters, Networking & Wi-Fi Tag: Netgear Brand: Netgear

Description
Reviews (0)

The GS110TPv3 eight-port Gigabit Ethernet Smart Managed Pro switch provides a great value, with configurable L2 network features like VLAN and PoE operation scheduling, allowing SMB customers to deploy PoE-based VoIP phones and IP surveillance. Advanced features such as Layer 3 static routing, IPv6 management, ACL, DiffServ QoS, LACP link aggregation and spanning tree will satisfy even the most advanced small business networks. Remote/cloud management capability with NETGEAR Insight. By activating the NETGEAR Insight cloud management, the users will enable fundamental management features allowing businesses to have simpler configuration and deployment from anywhere using the NETGEAR Insight app from mobile devices or the Insight Cloud Portal from any device with a web browser.

Smart Gigabit Ethernet switch with cloud management provides LAN access for eight users
Eight 10/100/1000BASE-T RJ45 ports and two dedicated 1000BASE-X SFP fiber ports
Easy to manage via web-based management GUI or Smart Control Center
Bandwidth: 20Gb/s
Dimensions: 1.1″H x 9.3″W x 4″D
69.5W maximum power consumption (with all ports used, full PoE, line-rate traffic); 15.1W maximum power consumption (with all ports used, line-rate traffic); 4.3W minimum power consumption (link-down standby); features IEEE 802.3az for maximum power savings
Fanless design allows for silent operation, great for deployment in noise-sensitive environments
Features VESA holes for desktop and wall-mounting
Flexible and cost-effective solution for SMB data, voice, and video converged network
55W PoE budget is available across eight Gigabit PoE+ (802.3at/802.3af) ports
Layer 3 static routing with 32 routes (IPv4) for inter-VLAN local routing
Advanced VLAN support for better network segmentation
IGMP Snooping and Querier for multicast optimization
Auto DoS prevention
RMON and SNMP v1, v2c, v3 remote monitoring
L2/L3/L4 access control lists for granular network access control including 802.1x port authentication
Advanced QoS for traffic prioritization including port-based, 802.1p, and L2/L3/L4 DSCP-based
Advanced per-port PoE controls for remote power management of PoE connected devices including operation scheduling
Remote/cloud management capability with NETGEAR Insight app
Lifetime manufacturer limited warranty; 2-year manufacturer limited warranty on power adapter

Specifications table
Attribute name	Attribute value
Address Database Size Amperage (amps), measured in amperes (A), is the strength of the electrical current.	1.25
Data Rate Performances	20
Depth in Inches Full-Duplex is a type of communication in which data can be transmitted in both directions on a signal carrier at the same time.	Yes
Gaming An uplink port is a port on a router, or switch, designed to connect a device to another device.	2 x 1000Base-X – SFP
Height in Inches The power supply’s voltage, which ultimately powers the device.	54VDC
Jumbo Frame Link Aggregation Control Protocol (LACP) is the practice of bundling individual links on a network to promote better performance outcomes.	Yes
Layer Maximum Data Transfer Rate is the highest rate at which a device can transfer data (in Mbps). For devices with upload and download capabilities, the maximum data transfer rate always refers to download speeds.	More than 3000
Network Management Type The number of Ethernet ports on a networking hardware device that Ethernet cables plug into.	8
Performance Class	Many-to-one port mirroring
Power Supply Power over Ethernet (PoE) is a standard that allows electrical power to pass through Ethernet cables. Devices with built-in PoE do not require any additional power source other than an Ethernet cable.	Yes
Quality of Service Simple Network Management Protocol (SNMP) is an Internet Standard protocol used to monitor and manage the network devices connected over an IP.	v1, v2c, v3
Series or Collection	Desktop, Wall Mountable
VLAN Support Specifies the length of the manufacturer warranty included with the product.	Limited Lifetime Warranty
Weight (lbs.) The overall width of the product, measured left to right.	9.3
