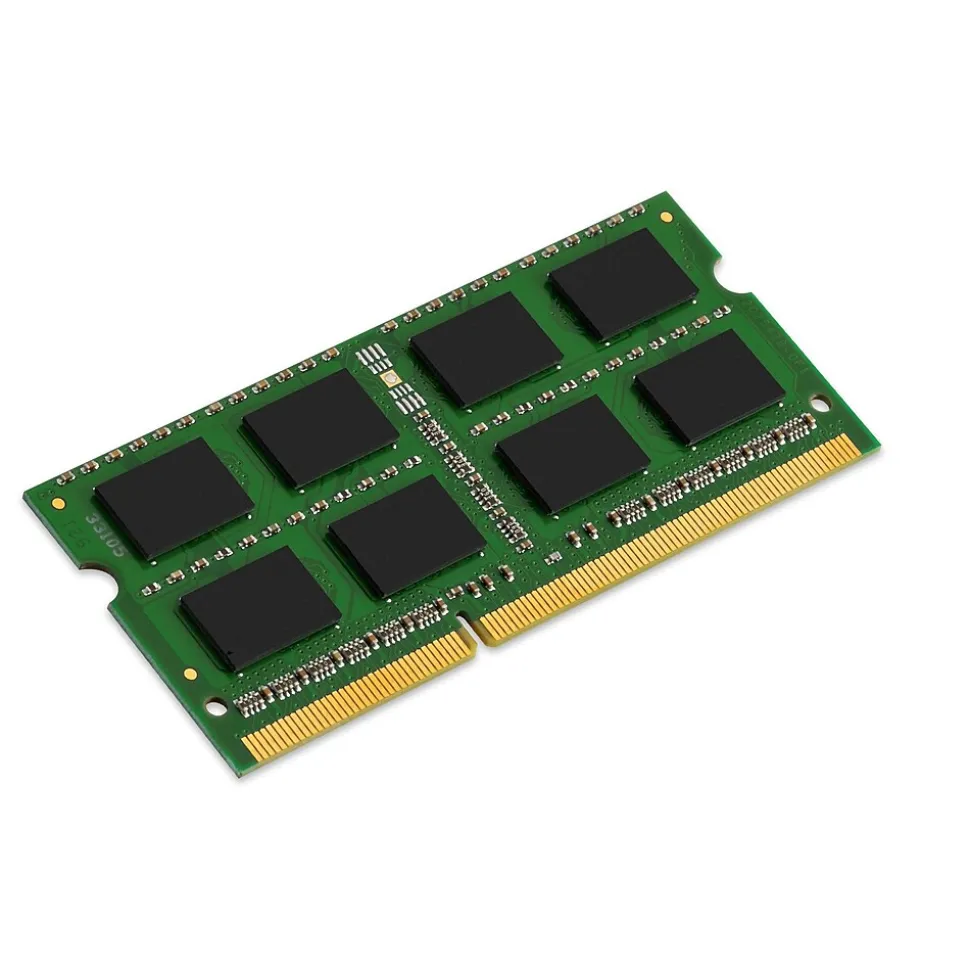

Kingston® 8GB (1 x 8GB) DDR3L (204-Pin SDRAM) DDR3 1600 (PC3 12800) Memory Module
Original price was: $67.00.$48.99Current price is: $48.99.
Kingston® RAM module offers a DDR2 SDRAM memory technology which is operated at the speed of up to 1600 MHz. Module supports non-ECC error checking by offering unbuffered signal processing and has 204-pin SoDIMM form factor.
- DDR3L (204-pin SO DIMM)
- DDR3 1600 (PC3 12800)
- Technology: SDRAM
- CAS latency: CL11
- Data integrity check: Non-ECC
- Cycle time: 1.5 ns
- Rank: Dual rank
- Voltage: 1.35 V
- Features: Unbuffered
- JEDEC standard 1.35V (1.28V – 1.45V) and 1.5V (1.425V – 1.575V) power supply, VDDQ = 1.35V (1.28V – 1.45V) and 1.5V (1.425V – 1.575V), 800MHz fCK for 1600Mb/sec/pin, 8 independent internal bank, burst length: 8
- CL(IDD): 11 cycles, row cycle time (tRCmin): 48.125 ns (min), refresh to active/refresh command time (tRFCmin): 260 ns (min), row active time (tRASmin): 35 ns (min)
- Maximum operating power (1.35V) = 2.721 W, UL rating: 94 V – 0, operating temperature: 0 – 85 deg C, storage temperature: -55 – 100 deg C
- Programmable CAS latency: 11, 10, 9, 8, 7, 6, programmable additive latency: 0, CL – 2, or CL – 1 clock, 8 bit pre-fetch, bi-directional differential data strobe, Internal(self) calibration : Internal self calibration through ZQ pin
- Meets UL, JEDEC, RoHS standards
| Attribute name | Attribute value |
|---|---|
| CAS Latency | 1 |
| Compatible With | Laptop |
| Warranty Information | 8GB |
| Memory Form Factor The type of pre-installed memory. | DDR2 |
| Memory Speed (MHz) | DDR3-1600/PC3-12800 |
| Memory Capacity Per Module | Unbuffered |
| ECC | 1 |
