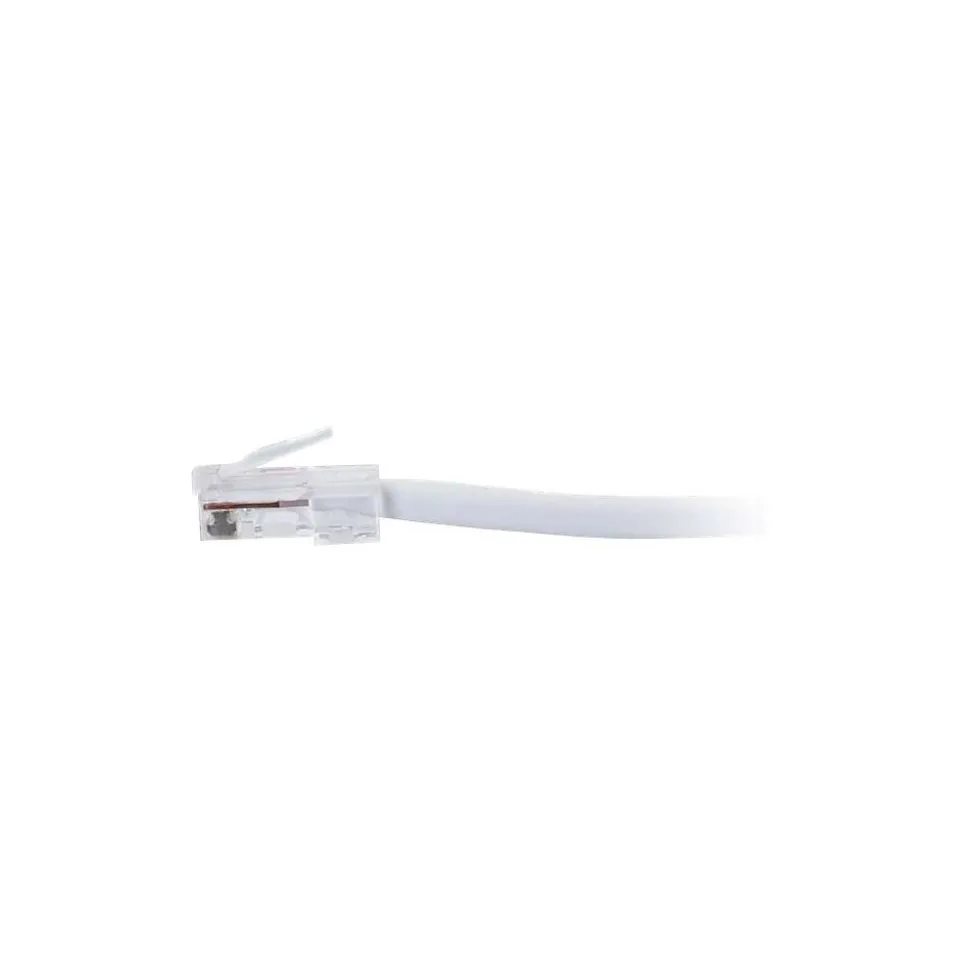

C2G 4232 1′ RJ-45 Male/Male Cat6 Non-Booted Unshielded Ethernet Network Patch Cable, White
Original price was: $7.00.$5.99Current price is: $5.99.
The C2G 1′ RJ-45 male/male category 6 white non-booted patch cable with PVC jacket truncates both impedance and structural return loss. The 24-AWG stranded bare copper cable minimizes near-end crosstalk levels. The 50-micron gold-plated contacts ensure optimal signal conductivity. Applications requiring bandwidth-intensive voice, data or video distribution need a fast Ethernet computer network patch cable. The bonded paired cable maintains the twist spacing throughout the line up to the termination point. This cable is compatible with hub, switch, router, network adapter, modem DSL/cable, patch panel and other twisted pair applications.
- Network patch cable for fast Ethernet networks, requiring bandwidth-intensive voice, data or video distribution applications
- Cable length: 1′
- Connections: one RJ-45 male connector on both ends
- Connectivity: Wired
- PVC Jacket for added durability and 24 AWG bare stranded copper conductors for excellent signal transmission
- Meets CE, TIA/EIA standards and certifications
- Contact material: 50 micron gold-plated
- Compatible with network adapters, hubs, switches, routers, DSL/cable modems, patch panels and other high performance networking applications
- Comes in white color
- Diameter: 6 mm + 0.15 mm OD jacket, 0.98 + 0.05 mm insulation
- Voltage rating: 30 V
- Resistance: 9.38 ohm/100 m (maximum) DC conductor
- Impedance: 100 ohm, Capacitance: 5600 pf/100 m, Propogation delay: 545 ns/100 m (maximum), Delay skew: 45 ns/100 m (maximum)
- Temperature: 75 deg C
- High quality copper cable construction effectively minimizes near-end crosstalk levels
- Weight: 0.03 lbs.
- Comes with lifetime warranty
| Attribute name | Attribute value |
|---|---|
| Cable Use | RJ45 |
| Device Type The primary color of the product | White |
| Conductor Material | RJ45 |
| Ethernet Does the product contain an ethernet port or connector | Yes |
