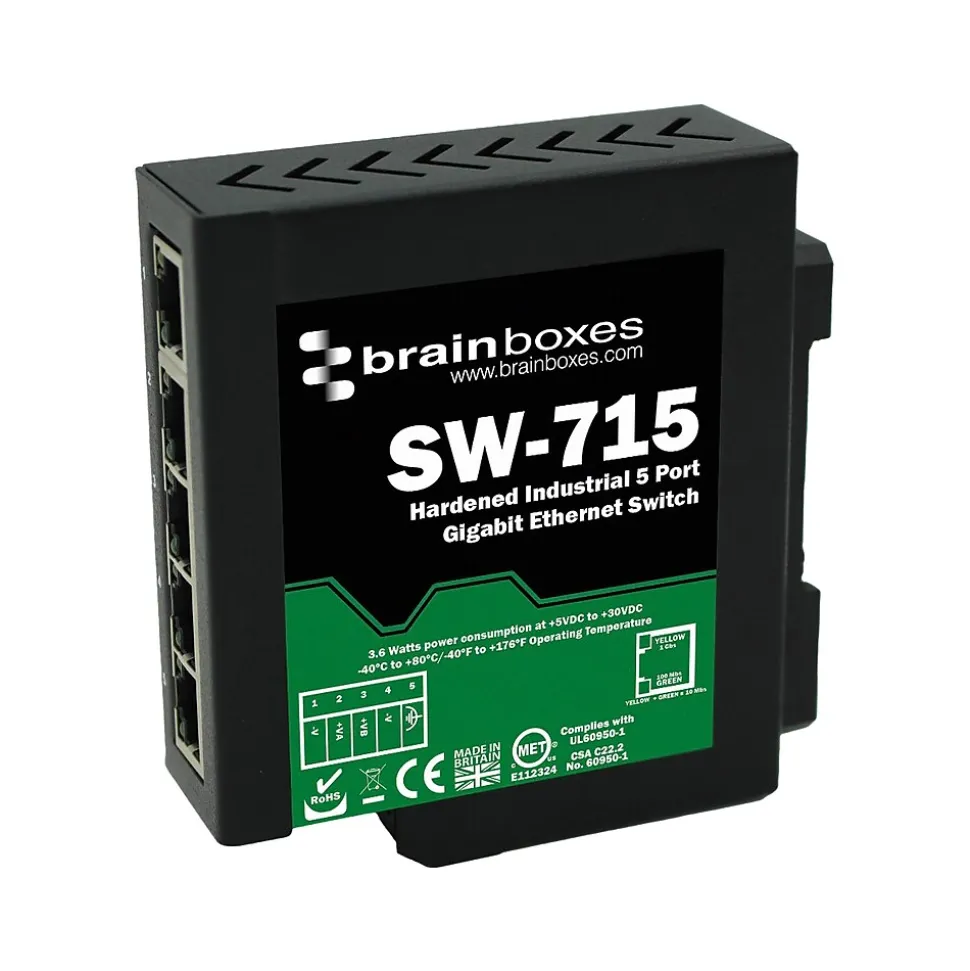

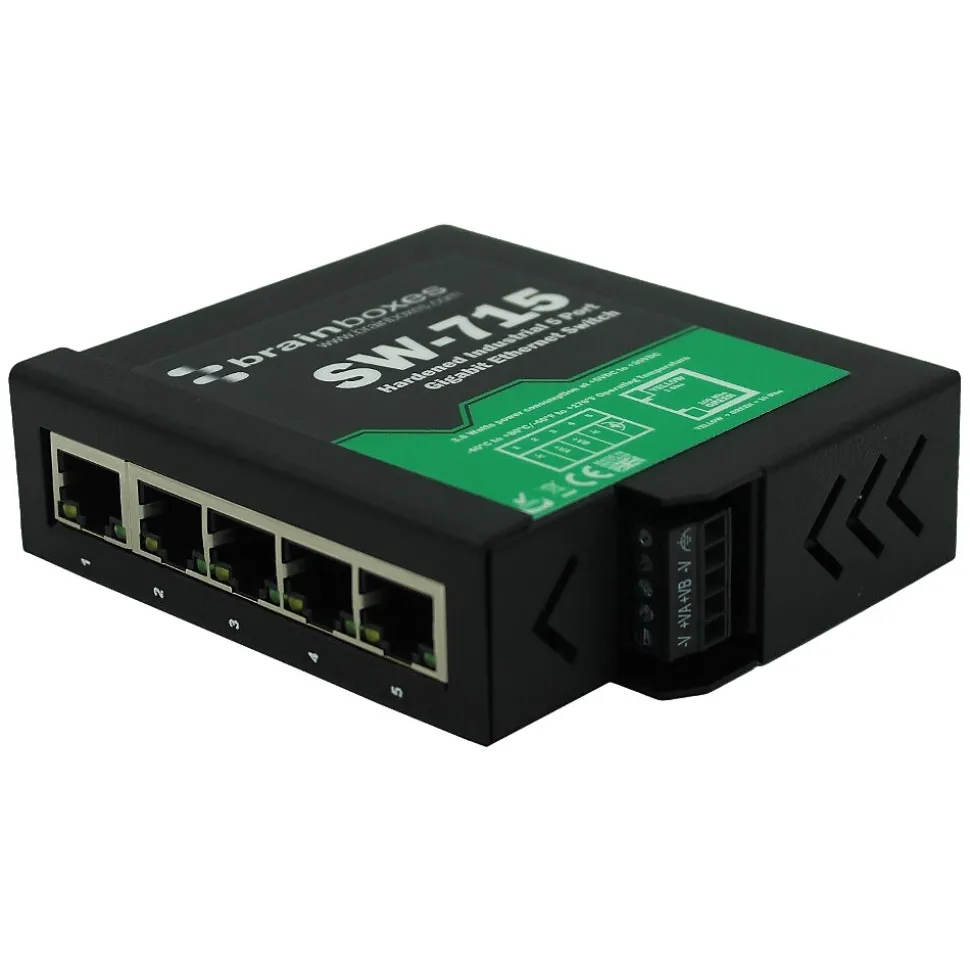

Brainboxes Industrial 5-Port Gigabit Ethernet Unmanaged Switch, 10/100/1000 Mbps, Black (SW-715)
$106.99
Brainboxes Industrial compact 5-port Gigabit Ethernet unmanaged switch is perfect factory floor, in vehicle and marine applications. Automatic detection of data transmission speed: 10/100/1000 Mbps. Dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimized based on the status of the link device. No software required.
- This unmanaged compact Ethernet switch is perfect for factory floor, in-vehicle, and marine applications
- Contains 5 x RJ45 jacks, 10/100/1000Mbs autosensing (auto-MDIX) Ethernet ports
- No software required: simply plug in any ethernet cable
- Dimensions: 3.9″H x 3.7″W x 1.1″D
- Power consumption: 3.6W
- Certifications and standards: Meets or exceeds the Microsoft Certified Gold Partner, WEEE, RoHS, AEO (C-TPAT), CE standards
- Tough metal case with all-round small profile
- Easy wire-removable screw terminal block
- All Ethernet ports are auto-MDI/MDIX supporting straight through or crossover Ethernet cables
- Integral DIN mount with ground
- Lifetime manufacturer limited warranty
| Attribute name | Attribute value |
|---|---|
| Auto-Sensing | 10/100/1000Mbps |
| Data Transfer Rate The overall depth of the product, measured front to back. | 1.1 |
| Gaming The overall height of the product, measured top to bottom. | 3.9 |
| LACP | No |
| Max. Data Transfer Rate (Mbps) | Unmanaged Switch |
| Number of Ethernet Ports | Gigabit Ethernet |
| Power Supply Power over Ethernet (PoE) is a standard that allows electrical power to pass through Ethernet cables. Devices with built-in PoE do not require any additional power source other than an Ethernet cable. | No |
| Quality of Service Simple Network Management Protocol (SNMP) is an Internet Standard protocol used to monitor and manage the network devices connected over an IP. | No |
| Series or Collection Actual manufacturer name for the color of the product. | Black |
| Warranty Information Weight of the product measured in pounds. | 0.6 |
| Width in Inches The overall width of the product, measured left to right. | 3.7 |
