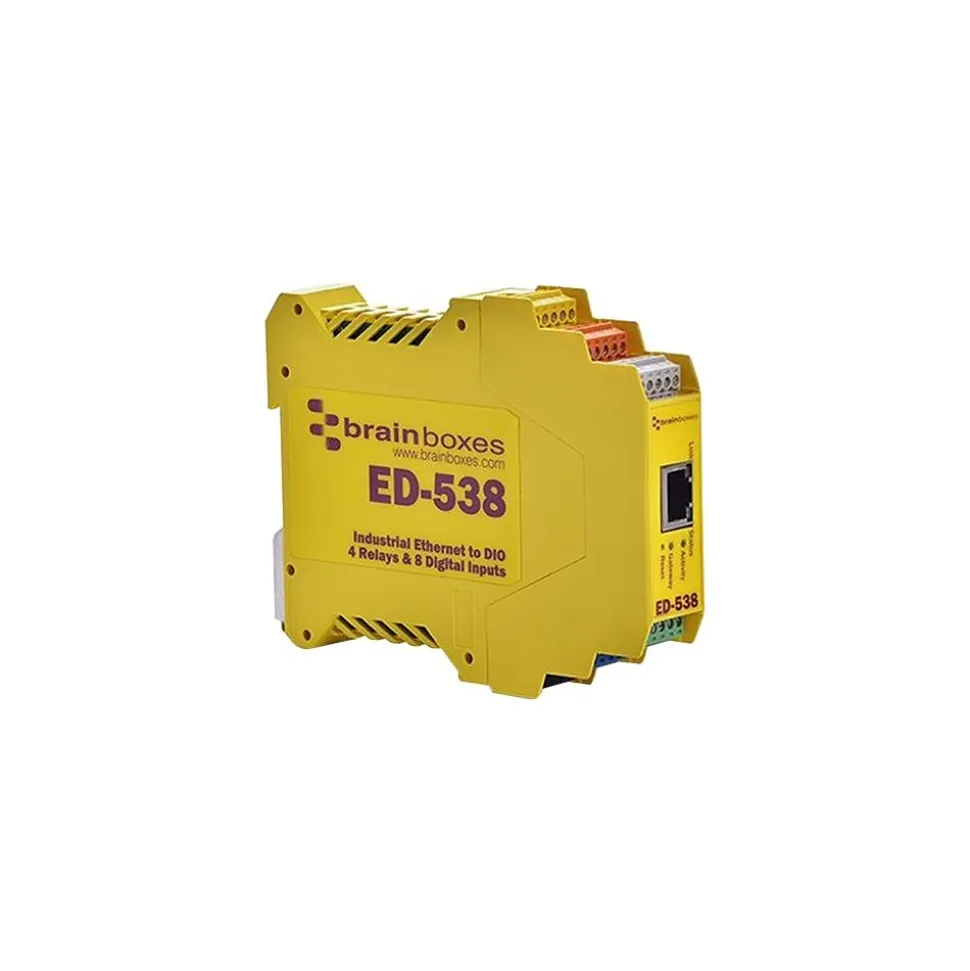

Brainboxes Ethernet to Digital IO Relay Gateway (ED-538)
$122.99
The Brainboxes ED-538 Ethernet to digital IO relay gateway is suitable for use with CNC machines/PLCs, gauges/dials, counters, sensors, motor and fan. It has eight digital inputs and four relays digital outputs. This reverse polarity protected gateway has redundant DC dual power inputs. It works with Microsoft Windows® 10, Microsoft Windows® 8/7/XP/Vista 32-bit and 64-bit Editions, Microsoft Windows® Server 2012, Android, Mac OS X and Linux operating sytem. Removable terminal block has color-coding and numbering for easy wiring. It supports simple ASCII or industry standard Modbus TCP.
- Dimensions: 5″ x 4″x 0.9″
- IO channels: Eight digital inputs and four relays digital outputs, Modbus TCP or DCON ASCII (over TCP or Virtual COM port) IO protocols
- Input logic level 0: -30 to 1, Input logic level 1: 2 V to 30 V, Input latches: Triggered by user programmable positive or negative edges
- Serial port: RS485 NuDam/ADAM compatible serial gateway
- Network: RJ45 jack 10/100 MHz autosensing, cross over autosensing (MDIX), ICMP, IP, TCP, DHCP, HTTP network protocols, 1500 V magnetic isolation
- Power: Redundant DC dual power inputs, reverse polarity protected 5 VDC to 30 VDC, 35 V maximum input
- Operating systems: Microsoft Windows 10, Microsoft Windows 8/7/XP/Vista (32 bit and 64 bit), Windows Server 2012/2008/2008 R2, iOS, Mac OS X, Linux
- Easy-wire – color coded and numbered removable terminal blocks
- Factory floor process control and automation, integrated DIN rail mount
- Supports simple ASCII or industry standard Modbus TCP
- Software: APIs for Visual Basic, C#
- WEEE, RoHS compliant
- Weight: 5.26 oz.
| Attribute name | Attribute value |
|---|---|
| dimensions | |
| Width in Inches The overall depth of the product, measured front to back. | 4 |
| Height in Inches Weight of the product measured in pounds. | 0.33 |
| features | |
| Gaming | No |
| ports | |
| USB Port | Yes |
