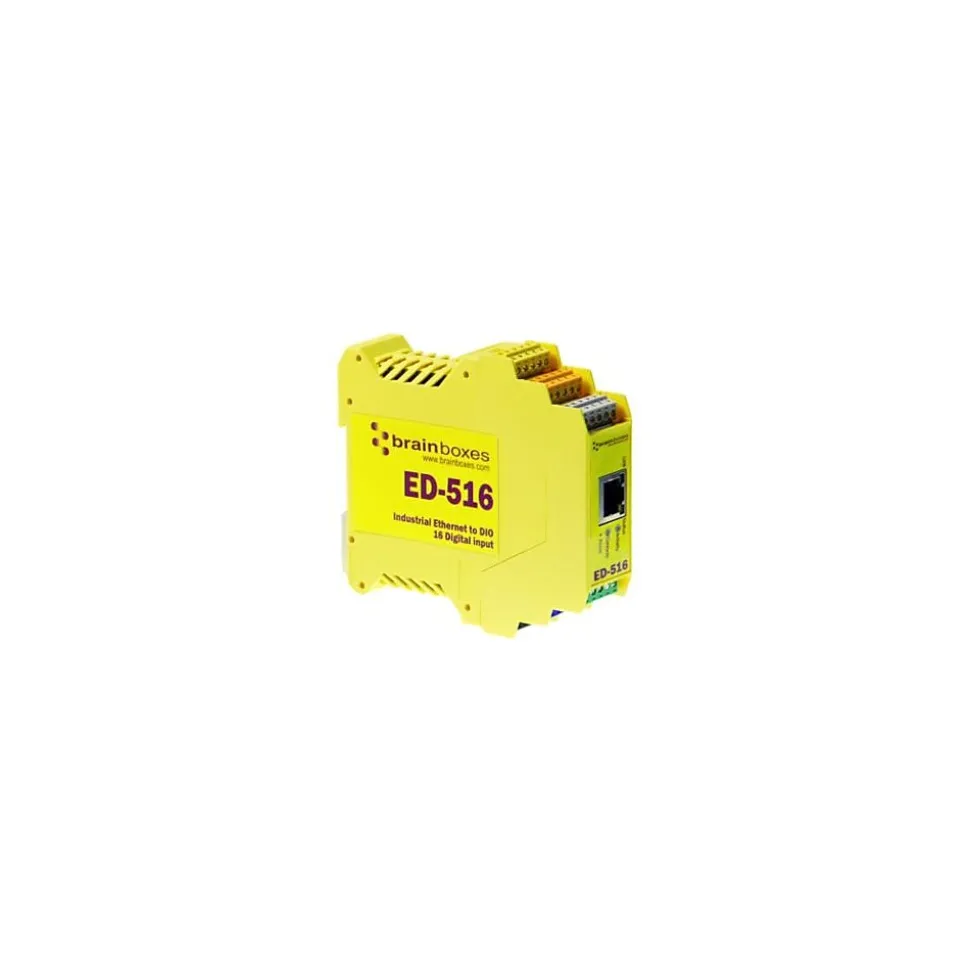

Brainboxes ED-516 Ethernet to 16 Digital Input Device Server
Original price was: $295.00.$138.89Current price is: $138.89.
Brainboxes ED-516 16 Digital input device server is well suited as RS485 Gateway for connecting with industry standard NuDAM, eDAM and ADAM modules. Server has 16 non-isolated digital input channels for better performance. Server is implemented using Windows COM port driver that is compatible with all PC packages. Server has latched inputs that stay true until acknowledged. Provides user programmable count that is positive or negative transitions of up to 100Hz. Has RJ45 Jack 10/100 MHz autosensing, cross over autosensing type network ports. Server has ICMP, IP, TCP, DHCP, HTTP network protocols. Provides 1500 V magnetic isolation between ports and network for better protection. Server is compatible with Microsoft Windows 8, Microsoft Windows 7, Windows Server 2008 and more.
- Measures 5″ x 0.9″ x 4″
- Features network RJ-45, serial ports for reliable connectivity
- Rail-mountable form factor
- Offers fast ethernet and 10/100Base-TX network for quicker operation
- Offers twisted pair connectivity
- Supports ICMP, IP, TCP, DHCP, HTTP network protocols for reliable connection
- Has 5 – 30VDC input power and is reverse polarity protected as well as operates at an input voltage of 35 V
- Works smoothly on Microsoft Windows 8 32 bit & 64 bit and 7 32 bit & 64 bit operating system
- Has an operating temperature of -30 to +80 deg C and storage temperature of -40 to 85 deg C
- Meets RoHS, CE, TAA, CCC-Mark and C-Tick certification/standards
- Weighs 4.8 oz
- Operating systems: Microsoft Windows 8/7/ (32-bit/64 bit), Windows Server 2003/2008/Vista/XP (32-bit/64 bit)
- Monitor any input from TTL to high voltage high current industrial devices, RS485 gateway for connecting to Industry standard NuDAM, eDAM and ADAM modules
- Removable, numbered, colour coded screw terminals
- Includes: Installation CD including manual, Microsoft signed drivers & utilities, quick start guide
- Certifications and standards: CE, CCC-Mark, C-Tick, RoHS, WEEE, Green compliant
- Weight: 4.8 oz.
- Warranty: Lifetime
| Attribute name | Attribute value |
|---|---|
| performance | |
| Gateway A network node used to connect two networks with different transmission protocols together. | Yes |
