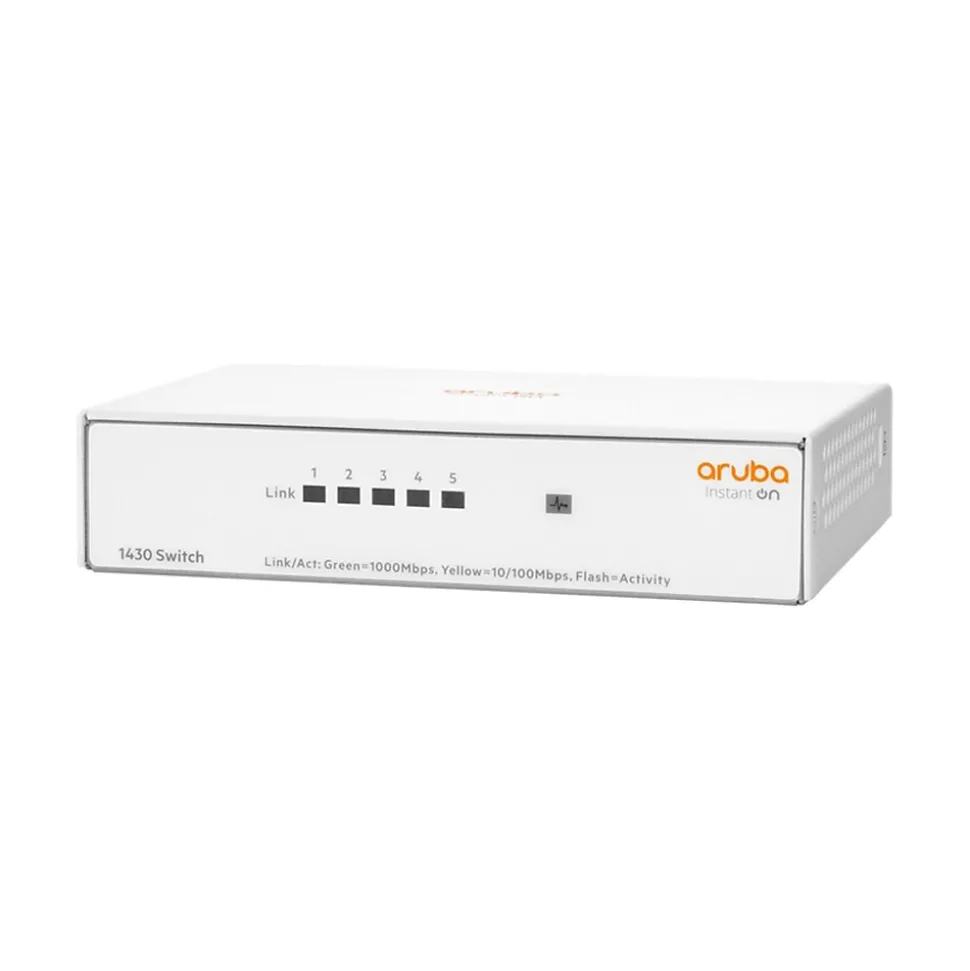

Aruba Instant On 1430 5-Port Gigabit Ethernet Unmanaged Switch, White (R8R44A#ABA)

Aruba Instant On 1430 5-Port Gigabit Ethernet Unmanaged Switch, White (R8R44A#ABA)

$32.99

SKU: SKUIM106NV29 Categories: Computers & Accessories, Ethernet Switches & Splitters, Networking & Wi-Fi Tag: Aruba Brand: Aruba

Description
Reviews (0)

The Aruba Instant On 1430 switch series is an unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in seven models in PoE and non-PoE configurations: one (1) 5-port, two (2) 8-port, two (2) 16-port, one (1) 24-port, and one (1) 26-port model with 2 SFP uplinks models. The Aruba Instant On 1430 switch series models are easy to use with zero configuration and no required ongoing administration. The unmanaged PoE models deliver fully automated support for powering compatible IP phones, video surveillance cameras, or wireless access points. The Aruba Instant On 1430 switch series supports Energy Efficient Ethernet (EEE) and is compliant with 802.3az standard requirements to save energy during periods of low data activity. All models are fanless for silent operation in office settings or acoustically sensitive environments and require less power to operate.

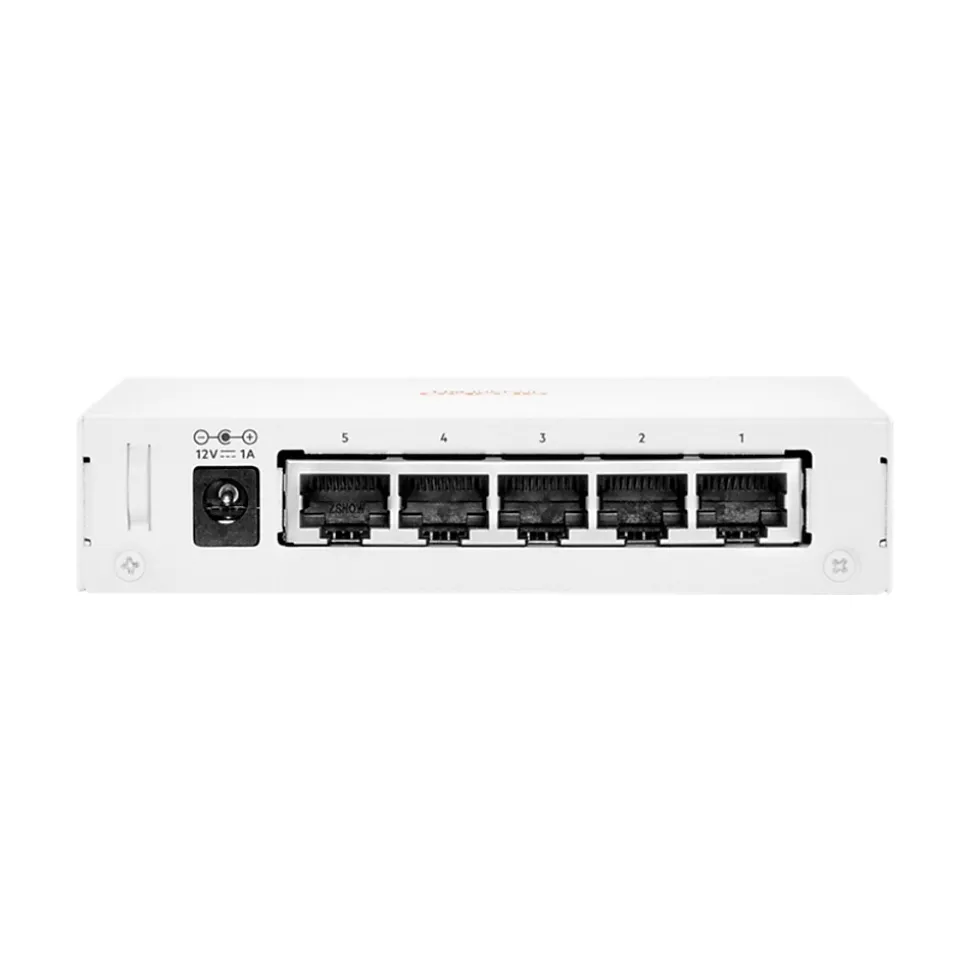

Unmanaged layer 2 Gigabit Ethernet switch features five RJ-45 autosensing 10/100/1000 ports
Quality of Service provides priority of time-sensitive packets (like VoIP and video) over other traffic based on DSCP or IEEE 802.1p classification
Supports Energy Efficient Ethernet (EEE) and is compliant with 802.3az standard requirements to save energy during periods of low data activity
Throughput: 7.44Mpps maximum; switching capacity: 10Gbps
Power consumption: 12W maximum, 1W idle
Powered by a 2kB EEPROM processor and features a 1MB packet buffer size
Simplified cabling automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports using Auto MDI/MDI-X
Jumbo frame support provides up to 9216 bytes frame size to improve the performance of large data transfers
Fan-less design for silent deployment in office spaces
Flow control provides a flow-throttling mechanism propagated through the network to prevent packet loss at a congested node
Lifetime manufacturer limited warranty

Specifications table
Attribute name	Attribute value
LACP Weight of the product measured in pounds.	0.6
Warranty Information Items of a particular grouping, as merchandised and labeled by a manufacturer	Instant On 1430
Depth in Inches The overall width of the product, measured left to right.	4.57
Gaming Auto-Sensing is a feature in which a device can determine the characteristics of an attached device and configure itself accordingly	Yes
Buffer Memory	Unmanaged Switch
Data Transfer Rate (Gbps) The power supply’s voltage, which ultimately powers the device.	100-240VAC
Power Supply Full-Duplex is a type of communication in which data can be transmitted in both directions on a signal carrier at the same time.	Yes
Number of Ethernet Ports Simple Network Management Protocol (SNMP) is an Internet Standard protocol used to monitor and manage the network devices connected over an IP.	No
Height in Inches Auto-Detecting is the automatic detection of a thing or situation.	No
True Color	Desktop, Wall Mountable, Rack-Mountable
Performance Class Power over Ethernet (PoE) is a standard that allows electrical power to pass through Ethernet cables. Devices with built-in PoE do not require any additional power source other than an Ethernet cable.	No
VLAN Support	2
Module Support Maximum Data Transfer Rate is the highest rate at which a device can transfer data (in Mbps). For devices with upload and download capabilities, the maximum data transfer rate always refers to download speeds.	More than 3000
Quality of Service	9216 Bytes
