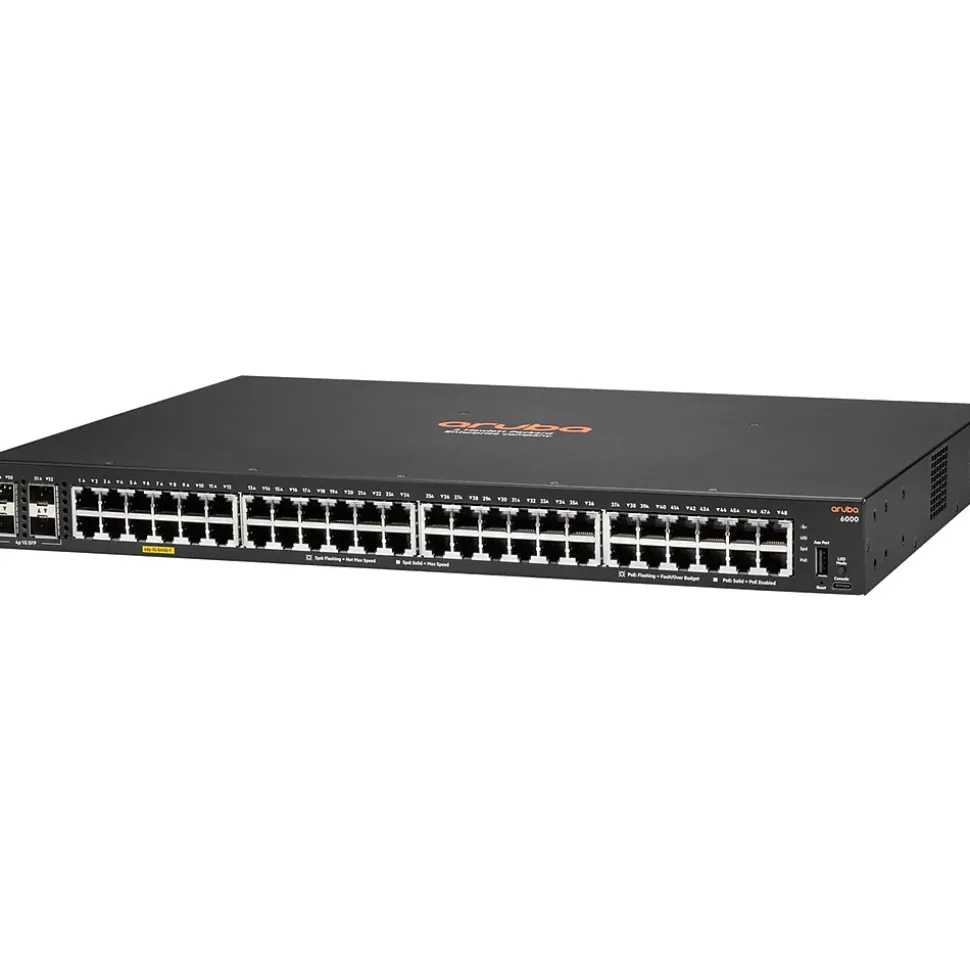

Aruba CX 6000 48-Port Gigabit Ethernet Managed Switch, Black (R8N85A#ABA)

Aruba CX 6000 48-Port Gigabit Ethernet Managed Switch, Black (R8N85A#ABA)

$126.89

SKU: SKUIM19ZP160 Categories: Computers & Accessories, Ethernet Switches & Splitters, Networking & Wi-Fi Tag: Aruba Brand: Aruba

Description
Reviews (0)

The Aruba CX 6000 switch series is modern family of entry level access switches perfect for branch offices, midsize businesses, and small enterprises. Designed for reliable, simple, and security-enhanced access, the Aruba CX 6000 series provides a convenient and cost-effective wired access solution for networks supporting IoT, mobile, and cloud applications. The Aruba CX 6000 series is based on the Aruba ASIC architecture with the programmable AOS-CX operating system used across the entire Aruba CX portfolio for a more consistent, more efficient operator experience. his fully-managed series has convenient built-in uplinks with up to 370W of Class 4 PoE to support IoT devices such as security cameras and wireless APs.

48-port Gigabit Ethernet managed switch perfect for branch offices, midsize businesses, and small enterprises
Features 48 x 10/100/1000BASE-T PoE ports with up to 370W power budget, 4 x 1G SFP uplink ports, 1 x USB Type-C console port, and 1 x USB Type-A host port
Switching capacity: up to 104Gbps
Comes in a 1U rack-mountable form factor
SNMPv1/v2c/v3 support provides read capability of industry-standard management information base (MIB) and private extensions
Quality of service features include: strict priority (SP) queuing; traffic prioritization (IEEE 802.1p) for real-time classification; rate limiting sets per-port ingress enforced maximums and per-port, per-queue minimums; large buffers for graceful congestion management; class of service (CoS) sets the IEEE 802.1p priority tag based on IP address, IP type of service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ
Supports a choice of management interfaces: intuitive, easy-to-use switch Web GUI, cloud-based Aruba Central, built-in programmable REST API interface, and more
Throughput capacity: up to 77.3Mpps
Maximum power consumption: 45W or 480W with max PoE power
Features a dual-core ARM Cortex A9 1016MHz CPU, 4GB DDR3 SDRAM, and 16GB eMMC memory
Lifetime manufacturer limited warranty

Specifications table
Attribute name	Attribute value
Amperage (amps)	1 Gbps
Data Transfer Rate (Gbps) The overall depth of the product, measured front to back.	12
Gaming An uplink port is a port on a router, or switch, designed to connect a device to another device.	4 x 1G SFP ports
Height in Inches The power supply’s voltage, which ultimately powers the device.	100-127VAC
Jumbo Frame Link Aggregation Control Protocol (LACP) is the practice of bundling individual links on a network to promote better performance outcomes.	Yes
Layer Maximum Data Transfer Rate is the highest rate at which a device can transfer data (in Mbps). For devices with upload and download capabilities, the maximum data transfer rate always refers to download speeds.	1000 – 1499
Module Support	Managed Switch
Number of Ethernet Ports	Gigabit Ethernet
Port Mirroring How the product is powered. (ie. Battery, Solar, etc.)	Internal (fixed) PSU
Power over Ethernet Quality of Service (QoS) devices equipped with QoS capabilities allow users to priortize bandwidth for specific devices or activities.	Yes
SNMP Items of a particular grouping, as merchandised and labeled by a manufacturer	CX 6000
Stackable	Rack Mountable
True Color	Yes
Warranty Information Weight of the product measured in pounds.	11.07
Width in Inches The overall width of the product, measured left to right.	17.4
