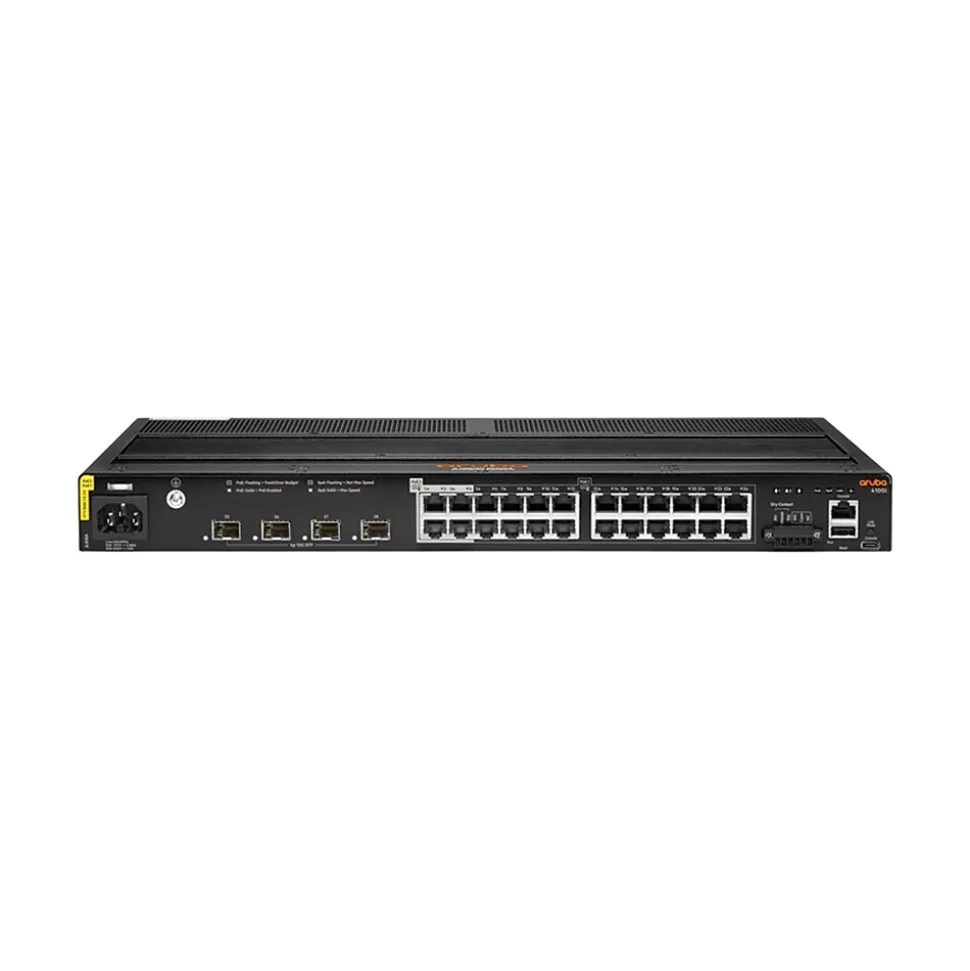

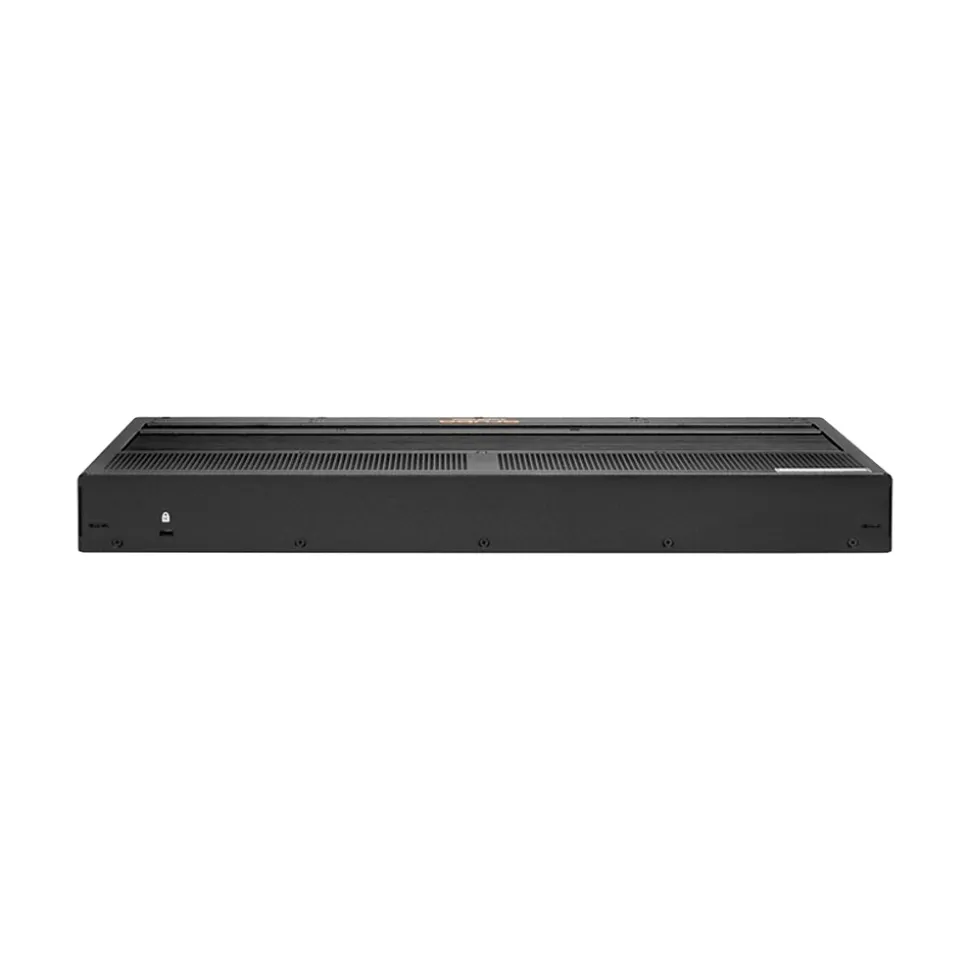

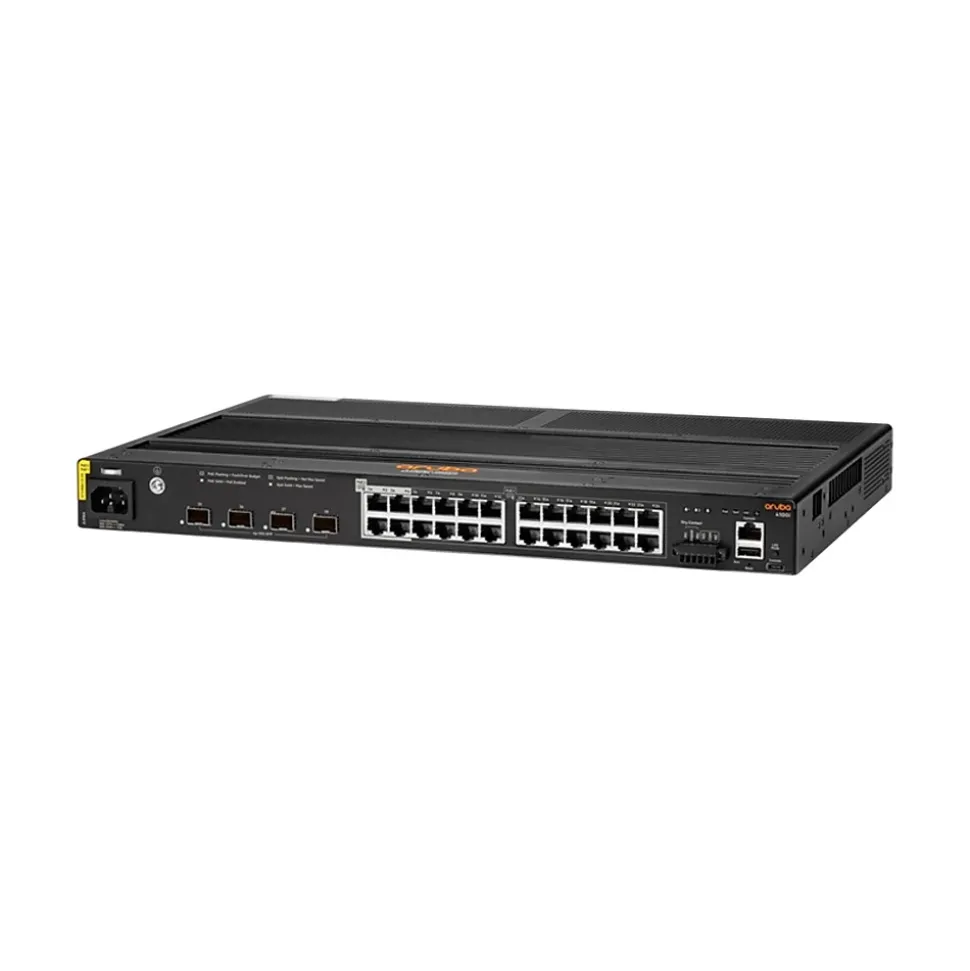

Aruba CX 4100i 24-Port Gigabit Ethernet Unmanaged Switch, Black (JL818A#ABA)

Aruba CX 4100i 24-Port Gigabit Ethernet Unmanaged Switch, Black (JL818A#ABA)

$134.99

SKU: SKUIM19MB641 Categories: Computers & Accessories, Ethernet Switches & Splitters, Networking & Wi-Fi Tag: Aruba Brand: Aruba

Description
Reviews (0)

The Aruba CX 4100i switch series is a modern family of ruggedized Ethernet switches ideal for connecting IoT, access points, and user devices in harsh environments. Created for high performance, reliable, and access with enhanced security, the Aruba CX 4100i switches provide versatile deployment options for enterprise networks extending beyond carpeted areas to challenging outdoor and industrial spaces. Based on the programmable AOS-CX operating system used across the Aruba CX portfolio, this IP30 ruggedized series helps deliver a more consistent, more efficient operator experience. This Layer 2 series has convenient built-in high-speed uplinks, supports both 30W and 60W PoE, and is ready for deployment with fan less 12 port DIN mount and 24 port 1U rack mount models. With robust QoS, support for static routing, and IPv6, the Aruba CX 4100i also simplifies ownership with no switch software licensing requirements.

High-performance ruggedized Ethernet switch is great for connecting IoT, access points, and user devices in harsh environments.
Features 4 x 100M/1G BaseT Class 6 PoE ports supporting up to 60W per port, 20 x 100M/1G BaseT Class 4 PoE ports supporting up to 30W per port, and 4 x 1G/10G SFP ports
Switching capacity: up to 128Gbps; routing throughput: up to 95Mpps
Mounts to an EIA/TIA standard 19″ telco rack (mounting brackets included with product)
SNMPv1/v2c/v3 support provides read capability of industry-standard Management Information Base (MIB), and private extensions
With robust QoS, support for static routing, and IPv6, it also simplifies ownership with no switch software licensing requirements
Management flexibility with support for Aruba Central, easy-to-use Web GUI, CLI, and Aruba NetEdit
Fixed internal power supply (300W); power consumption is 23W
Versatile form factors deliver both 30W and 60W PoE to optimize IoT power
Built-in high-speed 1/10GbE uplinks for demanding applications
Robust protection for sub-station applications and high tolerances for railway rolling stock, signaling and telecommunications
Secure and simple access for IoT and users with Aruba Dynamic Segmentation
Management flexibility with support for Aruba Central, easy-to-use Web GUI, CLI, and Aruba NetEdit
No switch software licensing required
5-year manufacturer limited warranty

Specifications table
Attribute name	Attribute value
Data Rate Performances	128
Depth in Inches Full-Duplex is a type of communication in which data can be transmitted in both directions on a signal carrier at the same time.	Yes
Gaming An uplink port is a port on a router, or switch, designed to connect a device to another device.	Yes
Height in Inches The power supply’s voltage, which ultimately powers the device.	100-240V
Jumbo Frame Link Aggregation Control Protocol (LACP) is the practice of bundling individual links on a network to promote better performance outcomes.	Yes
Layer Maximum Data Transfer Rate is the highest rate at which a device can transfer data (in Mbps). For devices with upload and download capabilities, the maximum data transfer rate always refers to download speeds.	More than 3000
Network Management Type The number of Ethernet ports on a networking hardware device that Ethernet cables plug into.	24
Performance Class	Yes
Power Supply Power over Ethernet (PoE) is a standard that allows electrical power to pass through Ethernet cables. Devices with built-in PoE do not require any additional power source other than an Ethernet cable.	Yes
Quality of Service Simple Network Management Protocol (SNMP) is an Internet Standard protocol used to monitor and manage the network devices connected over an IP.	Yes
Series or Collection	Non-Stackable
Switch Form Factor Actual manufacturer name for the color of the product.	Black
VLAN Support Specifies the length of the manufacturer warranty included with the product.	5 Year
Weight (lbs.) The overall width of the product, measured left to right.	17.5
